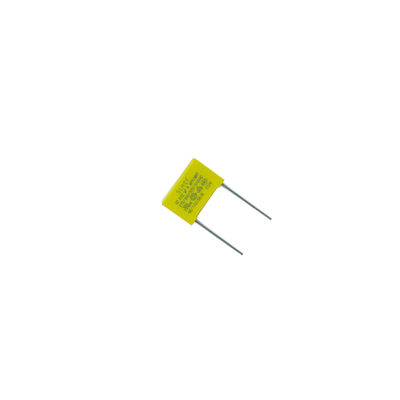

50/60Hz Rated Frequency X2 Safety Protection Capacitor 0.22UF 275V
Meet the washing machine safety regulations with 15mm lead wire length.
Product Specifications
| Attribute |
Value |
| Size |
P10 15 22.5 7.5MM |
| Capacitance Tolerance |
±20% |
| Lead Wire Material |
Tinned Copper |
| Dielectric Strength |
1600VAC |
| Rated Voltage |
310VAC |
| Package Type |
Radial |
| Mounting Type |
Through-Hole |
| Dissipation Factor |
≤ 0.1% |
| Capacitance value range |
Common values: 100pF~2.2μF (commonly used range 0.1μF~1μF), the tolerance is generally ±10% or ±20% |
Product Overview
The X2 Safety Capacitor is a reliable and essential component in electronic circuits, commonly used as a safety protection device in various electrical appliances. With a capacitance tolerance of ±20%, this X2 Safety Capacitor ensures stable and accurate performance in diverse applications.
Designed as an X2 Protective Device Capacitor, it is specifically engineered to provide enhanced safety features, making it suitable for use in equipment where safety is paramount. The X2 Safety Capacitor offers a capacitance tolerance of ±20%, ensuring consistent and reliable operation.
Equipped with lead wires that are 15mm in length, this X2 Safety Protection Capacitor offers ease of installation and flexibility in circuit design. The radial package type further enhances its versatility, allowing for convenient integration into various electronic systems.
Key Features
- X2 Safety Protection Capacitor
- Rated Frequency: 50/60Hz
- Size: P10 15 22.5 7.5MM
- Insulation Resistance: ≥ 10,000MΩ
- Dissipation Factor: ≤ 0.1%
- Package Type: Radial
- High dielectric strength of 1600VAC
- Wide operating temperature range: -40°C to +85°C
Technical Parameters
| Parameter |
Value |
| Lead Wire Length |
15mm |
| Insulation Resistance |
≥ 10,000MΩ |
| Capacitance Range |
0.001uF - 4.7uF |
| Rated Surge Voltage |
2.5 times rated voltage (775VAC) |
Applications
The X2 Safety Capacitor is designed for various applications including:
- Household appliances (washing machines, refrigerators, etc.)
- Industrial equipment
- Power supplies
- Electronic ballasts
- Automotive electronics
- Power line filtering
Customization Options
Customize your X2 Safety Capacitor with our Product Customization Services:
- Brand Name: SLFCF
- Place of Origin: CHINA
- Capacitance Tolerance: ±20%
- Operating Temperature Range: -40°C To +85°C
- Rated Voltage: 310VAC
- Insulation Resistance: ≥ 10,000MΩ
- Rated Frequency: 50/60Hz
Support and Services
Our product comes with comprehensive technical support and services including:
- Installation assistance
- Troubleshooting support
- Maintenance services
- Technical consultation
Packaging and Shipping
The X2 Safety Capacitor is carefully packaged in sturdy cardboard boxes to ensure safe transportation and handling. We use reliable shipping services with secure packaging to prevent any damage during transit.
Frequently Asked Questions
What is the brand name of this safety capacitor?
The brand name is SLFCF.
Where is the X2 Safety Capacitor manufactured?
The X2 Safety Capacitor is manufactured in China.
What is the voltage rating of the X2 Safety Capacitor?
The voltage rating of the X2 Safety Capacitor is 310VAC.
Is the X2 Safety Capacitor suitable for use in household appliances?
Yes, the X2 Safety Capacitor is designed for use in household appliances.
Does the X2 Safety Capacitor meet safety standards?
Yes, the X2 Safety Capacitor meets all relevant safety standards.
